| Brand Name : | OEM/Customized |
| Model Number : | ZH050QHD001-01B-TK2 |
| Certification : | ROHS、ISO9001、CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 500K pcs/ Month |
| Delivery Time : | 7-15 working days |
5.0 Inch PCAP TFT LCD with Capacitive Touch Screen 900nits Brightness
The ZH050QHD001-01B-TK2 is a high-performance PCAP Touch Display designed for applications demanding clarity, responsiveness, and durability. 5.0-inch IPS screen with 720x1280 resolution and 900 cd/m² high brightness, this display delivers vibrant visuals and excellent sunlight readability.
Driver IC GT911 capacitive touch controller, this PCAP Touch Display ensures smooth, accurate multi-touch operation. Its ultra-slim profile, high brightness, and wide viewing angles make it ideal for handheld terminals, smart control panels, medical devices, and more.
Product Specification
| item | ZH050QHD001-01B-TK2 |
| Screen Size | 5.0 Inch |
| Resolution | 720x1280 |
| Brightness | 900 cd/m²(Typ.) |
| Interface | RGB, 40pins Connector |
| Driver IC | ILI9881C |
| Display Mode | IPS, Normally Black |
| Active Aera | 62.1(W) x110.4(H) mm |
| Outline Dimension | 66.8(W) x121.3(H) x2.25(T) mm |
| Backlight | 12-CHIP WHITE LED ,60MA 24V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | with Touch Panel |
| Touch IC | GT911 |
| TP dimensions | 67.16(W)x121.95(H) mm |

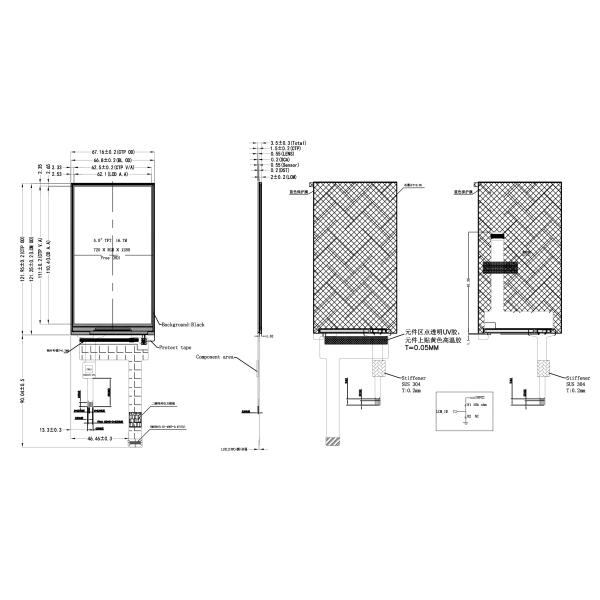

Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FAQ – PCAP Touch Display ZH050QHD001-01B-TK2
Q1: What is a PCAP Touch Display?
A: A PCAP Touch Display (Projected Capacitive) uses an
electrostatic field to detect touch through a glass surface,
offering high precision, multi-touch support, and durability.
Q2: Is the touch panel responsive with gloves or water?
A: The GT911 controller offers good performance with capacitive
gloves or water-resistant tuning, though exact sensitivity may vary
by application.
Q3: Can this PCAP Touch Display be used outdoors?
A: Yes, the 900 cd/m² brightness and wide temperature tolerance
make it suitable for outdoor environments.
Q4: What devices is this display commonly used in?
A: It’s ideal for smart home control panels, portable medical
devices, handheld instruments, and embedded systems.
Q5: Does the display support multi-touch?
A: Yes, the PCAP touch panel supports multi-touch gestures and
fast, accurate input.
Upgrade your device visibility with this premium PCAP Touch Display !
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
