| Brand Name : | OEM/Customized |
| Model Number : | ZH070BH106-07A |
| Certification : | ROHS、ISO9001、CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 500K pcs/ Month |
| Delivery Time : | 7-15 working days |

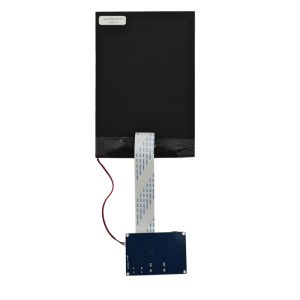

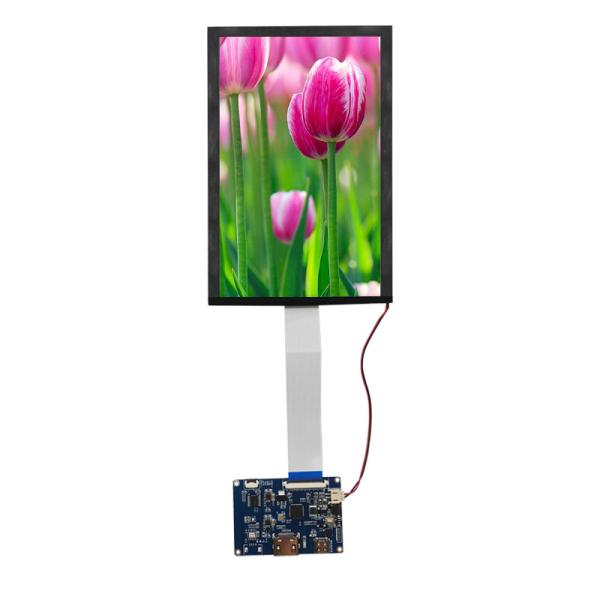

7 Inch High Brightness LCD Display 2000nits MIPI interface Optional Touch Panel
The ZH070BH106-07A is 7.0 inch High Brightness LCD Display featuring a stunning 2000 cd/m² typical brightness, optimized for daylight readability in outdoor and high-glare environments. Designed with IPS technology and a Normally Black display mode, it ensures excellent color saturation and uniform contrast across all angles.
This high-luminance display supports a 1920x1200 resolution with a compact form factor and MIPI interface, making it ideal for industrial handhelds, medical instrumentation, outdoor kiosks, and ruggedized tablets. The powerful 56-LED white backlight system ensures long-term brightness and reliability.
This High Brightness LCD Display is ideal for:
Outdoor industrial equipment & HMI terminals
Smart parking meters and EV charging stations
Military and law enforcement devices
Marine navigation systems
Medical monitors and diagnostic handhelds
Rugged tablets, handheld scanners, and kiosks
Company's focus on the core
Product Specification
| item | ZH070BH106-07A |
| Screen Size | 7.0 Inch |
| Resolution | 1200x1920 |
| Brightness | 2000 cd/m²(Typ.) |
| Interface | MIPI, 40pins Connector |
| Display Mode | IPS,Normally Black |
| Viewing Angle | 80/80/80/80 |
| Active Aera | 94.5(W) x 151.2(H) mm |
| Outline Dimension | 111.0(W) x166.0(H) x3.29(T) mm |
| Backlight type | 56-Chip White LED, 400mA 21V |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
Q1: Is this High Brightness LCD Display suitable for direct
sunlight use?
A1: Yes. With a typical brightness of 2000 cd/m² and IPS technology,
this display maintains clarity and color integrity in full daylight
conditions.
Q2: Can you supply a version with a touch panel?
A2: Absolutely. Both capacitive (PCAP) and resistive (RTP) touch
panels are available upon request.
Q3: What is the lead time for bulk orders?
A3: Standard lead time is 4–6 weeks for production orders. Expedited
samples may be available within 10 business days.
Q4: Is the MIPI interface compatible with Android-based systems?
A4: Yes. The MIPI DSI interface is widely supported by ARM-based and
Android SoCs. We can provide sample driver configuration upon
request.
Q5: Can the High Brightness LCD Display be customized for extended
temperature applications?
A5: Yes. We offer wide-temperature grade versions and components for
specialized environments. Please consult our engineering team.
