7 Inch 1080x1920 AMOLED Display Touch Screen On cell 800nits High Brightness Panel
This 7-inch OLED Display designed for industrial and commercial B2B applications that require high brightness, ultra-slim profile, and fast refresh capabilities. Delivering a 1080x1920 resolution with 800 cd/m² brightness and supporting up to 165Hz frame rate, this display is ideal for devices that demand crisp visuals and seamless performance.
Key Features of 7 Inch OLED Display
7 Inch Full HD OLED Display (1080x1920)
Crisp visuals with exceptional color reproduction and deep contrast
levels, ideal for precision-critical environments.
High Brightness – 800 cd/m² (Typ.)
Suitable for semi-outdoor and well-lit environments, ensuring
visibility under diverse conditions.
Integrated On-Cell Touch
Featuring FT3518U Touch IC, this OLED module offers
ultra-responsive capacitive touch without needing an external touch
layer.
MIPI 4Lane Interface & 165Hz Refresh
Enables smooth, high-speed data transmission and high refresh rate
for real-time interactive use.
Target Applications for 7 inch OLED Display
Portable Medical Devices
Smart Control Interfaces
Industrial Testing Equipment
AI Terminals and Handheld Devices
Navigation and Security Panels
Why Choose Our OLED Displays for Your Business?
Ultra-high resolution and brightness in a compact size
Industrial-grade reliability and long-term supply chain support
Integrated touch reduces system complexity and BOM cost
Customization services available (FPC, interface, touch tuning)
Full technical documentation and global shipping
Product Specification
| item | ZH070P4001-01 |
| Screen Size | 7 Inch |
| Resolution | 1080x1920 |
| Brightness | 800 cd/m²(Typ.) |
| Interface | MIPI 4Lan |
| Driver IC | VTDR6130 |
| Frame Rate | Support Max 165Hz |
| Active Aera | 87.1344(W) x 154.90(H) mm |
| Outline Dimension | 89.13(W)x160.9(H)x0.455 (T) mm |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -40℃~+80℃ |
| Touch Screen | ONCELL |
| Touch IC | FT3518U |

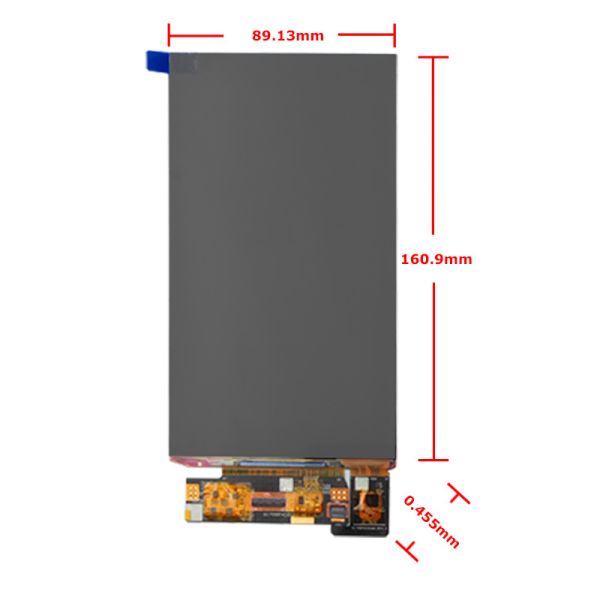

Product Drawing
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our
salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD
Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP
touch modules manufacturers is the level of customization we offer.
There is no limit to what we can create when we take on a custom
project!
Request a Quote Today
Looking to elevate your product line with high-quality OLED
Displays?
Contact our B2B sales team for technical drawings, pricing,
samples, and lead time.
We deliver professional solutions for industrial display
integration worldwide.
|
|
